KSB改进型自吸离心泵
2016年1月,德国KSB Aktiengesellschaft公司推出了最新版本的自吸离心艾匹灵泵。

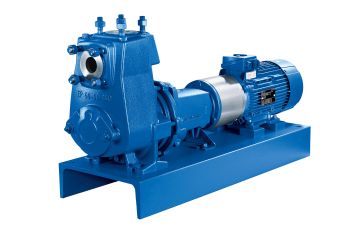

最新版本的自吸离心etprime泵提供良好的吸入性能,也在相对较差的入口条件下(KSB Aktiengesellschaft)
在相对较差的进口条件下,新泵组具有良好的吸入性能。即使入口压力很低,它们也能输送。例如,在负入口压力下,泵仍能达到9米的吸升。带气体的流体也可以处理,但不需要安装底阀。泵组设计用于处理温度介于- 30°C和+ 90°C之间的流体。它们的最大扬程为105米,流速可达180立方米/小时。新一代的类型系列包括28个尺寸,可以由2极或4极IE3电机驱动。该泵可采用紧凑紧密耦合设计(Etaprime B)或经典的底板耦合电机版本(Etaprime L),所有配套尺寸均与上一代完全兼容。根据应用的不同,客户可以选择油润滑滚动轴承或那些润滑脂填充的终身轴承。也可以为轴承支架上的温度或冲击脉冲传感器提供连接。 The materials available include cast iron and stainless steel. These options make the new type series suitable for a much wider application range, rather than for merely handling water. The space allocated to the mechanical seal is large and ensures good venting in this area. Generously spaced, the pump facilitates installation and removal of the mechanical seals. For more demanding applications, double mechanical seals in tandem or back-to-back arrangement can be fitted. And for handling emulsions, there is a new material for sealing elements are available as standard.
