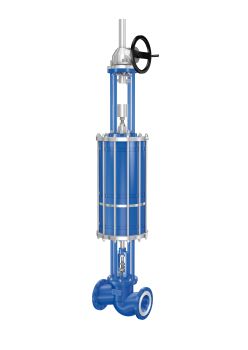

新型气动执行机构串联活塞由KSB

活塞执行器是为具有线性阀杆运动的阀门(截止阀和闸阀)设计的。新执行器的一个特殊技术特点是双活塞串联排列，用于高致动力设计的变体。这意味着两个活塞在不同的气动室中沿着一根杆运行。在双作用致动器设计中，500毫米直径的活塞和7 bar的控制压力相结合，可以实现超过250,000 N的致动力。活塞配有一个圆盘，每个圆盘都有一个单唇形接头。这种配置确保平稳，低摩擦的运动。活塞杆由u形环和刮板环密封。另一个特点是内部空气供应。由于空气在内部路由，电磁阀和气缸腔之间的外部管道是不必要的。电磁阀通过Namur接口连接到执行器。 The actuators are also available with spring assemblies which move the valves to the defined fail-safe position in the event of a compressed air failure. Compared with conventional actuators of this size, the spring assembly is fitted within and not outside the pneumatic chamber. The actuator’s overall height can thus be reduced. Manual override and a mechanical travel stop for closed and open positions are optionally available. Suitable working media are dry, clean, non-combustible and non-aggressive gases. Upon request, SISTO-LAP-500 is available as a special variant suitable for use at ambient temperatures of down to -40 °C.
