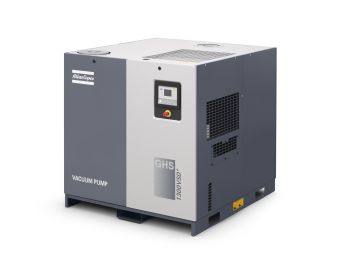

Atlas Copco Extends its Range of GHS VSD+ Vacuum Pumps to 1900 m³/h

Incorporating variable speed drive (VSD) technology to keep power closely aligned with fluctuating production demand, the GHS VSD+ range delivers energy savings of up to 50% compared with conventional fixed-speed vacuum pumps. In addition it offers plug-and-play simplicity, advanced control features and lower-than-average noise levels.

The GHS 1300–1900 VSD+ is an oil-sealed rotary screw vacuum pump with a range of 1300 to 1900 m3/h and an ultimate pressure of 0.35 mbar(a). However, its footprint is less than 2.3 m3, enabling easy installation without taking up valuable floor space at a production facility.

Alongside a clear and detailed front-panel display, SmartLink connectivity is available as an additional option, which provide users with greater insight and control into the machine’s operational performance and thereby maximise uptime. The vacuum pump also boasts Atlas Copco’s Elektronikon for state-of-the-art monitoring, enabling full control to enhance energy savings.

Optional water cooled versions are available, with an integrated energy recovery system that could recover up to 100% of the used energy as hot water (90°C), which can be used for process requirements to save on excess fuel usage.

The vacuum pump’s market-leading oil retention means that the quality of the exhausted air is optimal, which contributes to employee wellbeing and eradicates oil spills for a cleaner working environment.

gh 1300 - 1900 VSD +适合集中vacuum systems, glass bottle manufacture and canning, as well as many other applications.

The new vacuum pump is also available as a turbo version if fast evacuation times are needed. It enables faster cycle times for higher production and is ideal for meat, cheese and chicken packaging, as well as cooling.

For wet applications such as plastics, clay moulding and drying of pipelines, customers can choose the GHS VSD+ as a humid version.
